    Single Punching Candy Making 24 Ton Manual Tablet Press Machine

    Ask Lasest Price
    Brand Name : MITR
    Model Number : MC-24
    Certification : ISO9001:2008/CE
    Price : Negotiable
    Payment Terms : TT,Western union
    Supply Ability : 10set per week
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Single Punching Candy Making 24 Ton Manual Tablet Press Machine

    Small Lab 12 Ton Manual Hydraulic Tablet Press Machine For Lithium Battery And Ceramic Powder Pressing


    Application:

    The application of the tablet press is very wide in various fields such as button cell, electronic component, lithium battery, metallurgical powder, ceramic, medicine and the like, which are mainly applied in the pre-laboratory or production of some laboratories, such as the production of button cells, electronic components, lithiums, metallurgical powder, ceramics, medicine and the like.

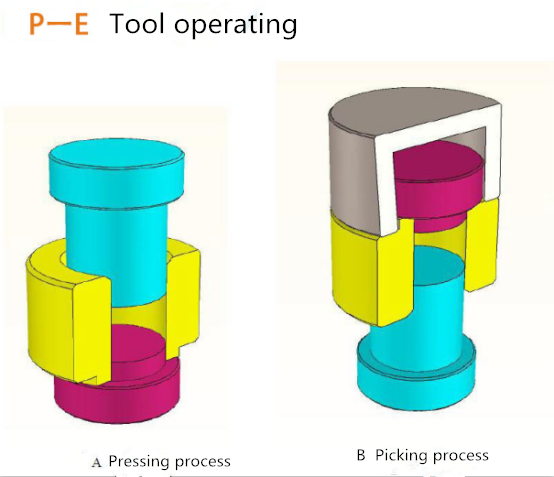

    Technical tool for tablet press


    NameModelSize of toolModelSize of toll
    Spec of tablet press toolM0101-PA33mmM0103-PC1515mm
    M0101-PA44mmM0103-PC1616mm
    M0101-PA55mmM0103-PC1818mm
    M0102-PB66mmM0103-PC2020mm
    M0102-PB77mmM0103-PC2222mm
    M0102-PB88mmM0103-PC2525mm
    M0102-PB99mmM0104-PD3030mm
    M0102-PB1010mmM0104-PD3232mm
    M0102-PB1111mmM0104-PD3535mm
    M0102-PB11.511.5mmM0104-PD4040mm
    M0102-PB1212mmM0105-PE5050mm
    M0102-PB1313mmM0105-PE6060mm
    M0102-PB1414mmM0105-PE7070mm
    HF-212.7mmM0105-PE8080mm
    HF-12M0105-PE100100mm
    Tool depth of tablet pressTool specTool depthTool specTool depth
    3-6mm20mm41-50mm55mm
    7-14mm30mm51-60mm60mm
    15-25mm40mmAbove 61 should be customized65mm
    26-40mm45mm

    Note: This tool price is not included in the unit price. If you need these tool,please contact us for the details quotation.


    Technical selection parameters of manual tablet machine

    ModelTonpiston stroke

    piston diameter

    Column spacingRoot number of columnDimensionWeight
    Manual tablet pressMC-50-5T30mm45mm96*130mm2225*155*380mm28kg
    MC-120-12T30mm70mm96*130mm2

    225*155*380mm

    28kg
    MC-150-15T30mm80mm80*130mm4

    245*175*390mm

    40kg
    MC-240-24T30mm95mm80*150mm4

    245*175*415mm

    42kg
    MC-300-30T40mm110mm92*160mm4275*195*420mm56kg
    MC-400-40T50mm130115*185mm4295*215*500mm75kg
    MC-600-60T60mm150185*250mm4405*240*565mm120kg

    Company Information

    We are Changsha Mitrcn Instrument Equipment Co.,Ltd, our main business is the R&D, production and marketing of experimental equipment and related technical consultation services.

    Our company specialize in planetary ball mill, roller ball mill, stainless glove box,acrylic vacuum glove box,horizontal light ball mill,tablet machine and related equipment.

    We have our own factory in Changsha, which enable us provide you with OEM services .

    We have the talented technical team members more than 30 including Ph D., Master, Senior engineer, Senior technician, technicians.We have the more than 150 staff in the factory.
