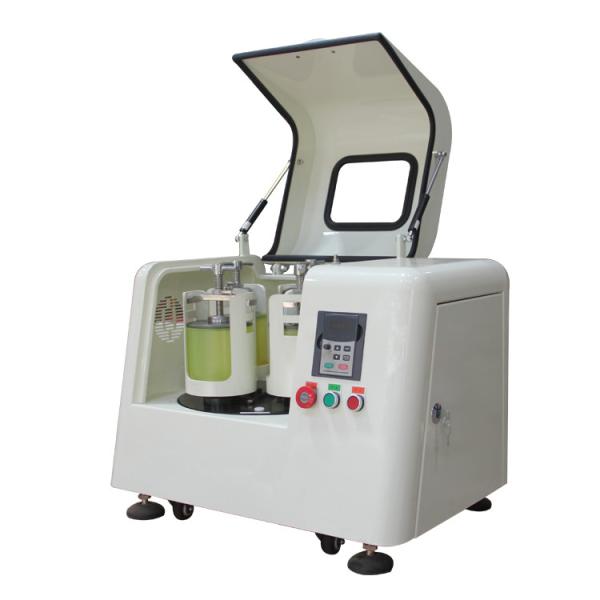

4l Lab Ball Mill Nano Grinding Mill/Vertical Wet And Dry Ball Mill
For Food/Tea
Working principle:
The planetary ball mill performs mixing by continually revolving
the large plate and rotating the containers concurrently. Both the
plate revolution (centrifugal) speed and container rotation
(planetary) speed are independently adjustable. This unique mixing
capability allows the operator to design precise solutions for
mixing various systems. To further improve the mixing efficiency,
grinding media can be added into the containers. Our machines are
built in such a way that the weight balancing is required. Our
machines run very quietly with noise <50 (dB). Ball Mill Jars
and Balls are sold separately.
Application Area of lab vertical planetary ball mill:
Geology and Mineralogy: rock, gravel, sand, minerals
Ceramics: porcelain, sintered ceramics, clay, fireclay
Chemistry: pesticides, fertilisers, salts, inorganic and organic
materials
Biology: plants, leaves, freeze-dried samples
Pharmaceuticals: ophthalmological agents, gels, creams, extracts,
drugs, pastes, dragees, tablets
Metallurgy: ores, sinters
Material technology: pigments, precious materials, new materials,
alloys, mechanical alloying and activating
Feature:
Efficient grinding for superior results up to 0.1µm
Adjustable speed ratios
Grinding jar volumes from 50ml to 5L in 4 different materials at
the same time.
Reliable for continuous use
Oil seal mute technology: Our machines run very quietly with noise
<50 (dB)
Safety gear lock
MITR oil seal mute planetary ball mill has the universal wheel to
push while moving and has the supporting foots to stable while
operation.
There are three series of planetary ball mill: Vertical ball mill;
Horizontal ball mill;Full direction ball mill
Technical parameter:
| Model | Spec | With ball mill jar | Remarks |
| | Spec(ml) | Quantities | |
| YXQM-0.4L | 0.4L | 50-100ml | 2 or 4 | With 50ml vacuum ball mill jar |
| YXQM-1L | 1L | 50-250ml | 2 or 4 | With 50-100ml vacuum ball mill jar |
| YXQM-2L | 2L | 50-500ml | 2 or 4 | With 50-250ml vacuum ball mill jar |
| YXQM-4L | 4L | 50-1000ml | 2 or 4 | With100-500ml vacuum ball mill jar |
| YXQM-8L | 8L | 500-2000ml | 2 or 4 | With250-1000ml vacuum ball mill jar |
| YXQM-10L | 10L | 500ml-2.5L | 2 or 4 | With 250-2.5L vacuum ball mill jar |
| YXQM-12L | 12L | 1L-3L | 2 or 4 | With 500-3L vacuum ball mill jar |
| YXQM-16 | 16L | 1L-4L | 2 or 4 | With 500-4L vacuum ball mill jar |
| YXQM-20L | 20L | 1L-5L | 2 or 4 | With 1000-5L vacuum ball mill jar |
| YXQM-40L | 40L | 4L-10L | 2 or 4 | With 3L-10L vacuum ball mill jar |
| YXQM-60L | 60L | 6L-15L | 2 or 4 | With 5L-15L vacuum ball mill jar |
| YXQM-80L | 80L | 6L-20L | 2 or 4 | With 5L-20L vacuum ball mill jar |
| YXQM-100L | 100L | 10L-25L | 2 or 4 | With 9L-25L vacuum ball mill jar |
| Model | Voltage | Motor power(KW) | Inverter power KW | Total timing (min) | Alternating Run Time | Rotation speed r/min | Noise ≤db |
| Revolution speed | Rotation speed |
| YXQM0.4L | 220V 50HZ | 0.55 | 0.55 | 1-9999 | 1-9999 | 5-450 | 10-900 | <50db |
| YXQM1L | 220V 50HZ | 0.55 | 0.55 | 1-9999 | 1-9999 | 5-450 | 10-900 | <50db |
| YXQM2L | 220V 50HZ | 0.75 | 0.75 | 1-9999 | 1-9999 | 5-400 | 10-800 | <50db |
| YXQM4L | 220V 50HZ | 0.75 | 0.75 | 1-9999 | 1-9999 | 5-400 | 10-800 | <50db |
| YXQM8L | 220V 50HZ | 1.5 | 1.5 | 1-9999 | 1-9999 | 5-320 | 10-640 | <58db |
| YXQM10L | 220V 50HZ | 1.5 | 1.5 | 1-9999 | 1-9999 | 5-320 | 10-640 | <58db |
| YXQM12L | 380V 50HZ | 1.5 | 2.2 | 1-9999 | 1-9999 | 5-320 | 10-640 | <58db |
| YXQM16L | 380V 50HZ | 2.2 | 2.2 | 1-9999 | 1-9999 | 5-280 | 10-560 | <58db |
| YXQM20L | 380V 50HZ | 3.0 | 3.7 | 1-9999 | 1-9999 | 5-230 | 10-460 | <60db |
| YXQM40L | 380V 50HZ | 5.5 | 7.5 | 1-9999 | 1-9999 | 5-220 | 10-440 | <63db |
| YXQM60L | 380V 50HZ | 7.5 | 7.5 | 1-9999 | 1-9999 | 5-180 | 10-360 | <65db |
| YXQM80L | 380V 50HZ | 7.5 | 11 | 1-9999 | 1-9999 | 5-180 | 10-360 | <65db |
| YXQM100L | 380V 50HZ | 11 | 11 | 1-9999 | 1-9999 | 5-180 | 10-360 | <68db |
Ball Mill Jars And Ball Mill Grinding Media
Our factory can provide 304 stainless steel jar,Tungsten carbide
jar(YG8),ceramic jar,alumina jar,zirconia jar,agate jar.Nylon jar,
Polyurethane jar, PTFE jar.we can also provide grinding media
stainless steel,ceramic,corundum,alumina,zirconia,agate,tungsten
carbide.
