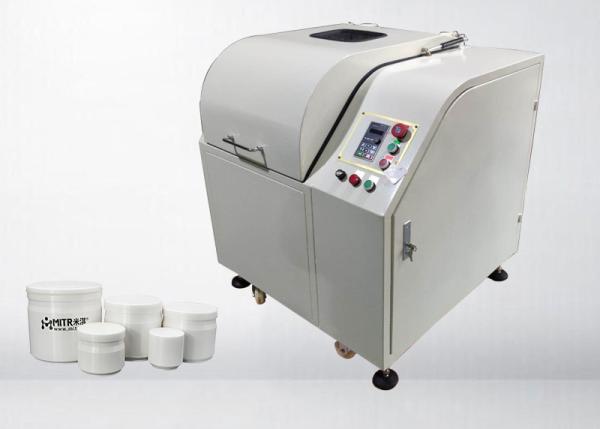

Lab Ball Mill With 360 Full-Directional Rotation For Super Fine
Powder Without Sediment
Application:
It is widely used in Pearl, ginseng, Dendrobium candidum, tablets,
medicament, liquorice, coke, coal, glass, cellulose, paper, chip,
polymer, pigment, metal oxide, iron ore, iron powder, aluminum
powder, magnesium powder, ceramics, Alumina, bone, kaolin,
Limestone, gypsum, quartz, minerals, ores, carbonized fibres,
graphite, ink, clay minerals, fibre products, sewage sludge,
catalysts, chemicals, alloys, soils, waste samples, wood, plant
materials, Cement slag, concrete, slag, tobacco.
Our company have the laboratory with 1000 sets of application cases
and maybe could provide you some suggestion.
Feature of MITR 360 degree full direction planetary ball mill
1. MITR 360 degree omnidirectional planetary ball mill---Patented
oil seal mute technology and gear drive core technology(Gear
running in the oil tank ),noise reduced by 50%,increase service
life more than 2 times.
Homogeneity:For the same material and the same process, the results
are required to be the same when two or four jars grinding.
Repeatability:For the same material and the same process, the
results are required to be the same when repeated grinding.
2. MITR 360 degree omnidirectional planetary ball mill used dry
mill, wet mill, vacuum mill, protective atmosphere mill, low
temperature mill (need low temperature planetary ball mill, high
temperature grinding.
3. MITR 360 degree omnidirectional planetary ball mill has the
universal wheel to push while moving and has the supporting foots
to stable while operation.
4. The gear drive instead of the belt drive which is easy to skid
and the rotation speed not stable.
5. It not only keeps the stability of gear drive, but also
overcomes the shortcoming of the original belt drive, such as the
belt easy to slip and unstable speed.
6. Planetary movement principle is adopted in the ball mill
jars.,which has high efficiency and fine granularity.
7. Frequency conversion control, the ideal speed can be selected
according to the test results.
8. The inverter has the protection of undervoltage and overcurrent,
and has the memory after the power off, so it can protect the motor.
9. It has a timing shutdown and an automatic timing function of positive and negative rotation.It can freely select the operation mode as request with one - way , alternating , continuous, timing and non - timing. and improves the grinding efficiency .
10. It can obtain four samples of different sizes and materials from one experiment at the same time.
11. Low center of gravity, stable performance, compact structure, convenient
operation, safe and reliable, low noise, no pollution, low loss.The device is equipped with a safety switch, which can avoid the equipment running after opening the safety cover, and avoid a safety accident;
12. When the planetary main disk are planetary working,it is operated
by 360 degrees rotation at the same time,which effectively avoids
the deposition of the materials during dry grinding.
13.The 360 degree rotation mode could adjust the rotational speed
according to the experiment demand,and can select between 1r/min to
14r/min.
14. MITR 360 degree omnidirectional planetary ball mill 2L is the motor
direct connection
Techincal parameter:
| Brand Name | MITR  |
| Model | 360 degree rotating omnidirectional planetary ball mill-
MITR-QMQX-2L |
| Single Jar Grinding and Total Volume | 500mlL*4=2L(Vacuum jar selection 250ml) |
| General grinding jar material selection | Metal material selection:304 stainless steel,Tungsten carbide(YG8) |
| Nonmetal material selection:ceramic / corundum / alumina, zirconia,
agate |
| high polymer material selection:Nylon, polyurethane,
polytetrafluoroethylene(PTFE) |
| General grinding ball material selection | Stainless steel,ceramic,corundum,alumina,zirconia, agate, tungsten carbide |
| Maximum loading per jar | Raw material and grinding ball less than 1/3 of grinding jar |
| Feeding granularity | Friable material less than 10mm,others less than 3mm |
| Discharging granularity | minimum up to 0.1μm |
| Grinding Method | Dry grinding / wet grinding / high energy alloying grinding /
vacuum grinding(need customized) / low temperature grinding(need
customized) |
| Planetary speed (variable frequency adjustable) | Max Revolution 0-400r/min,Rotation 0-800r/miPlanetary total
speed:0-3200r/min |
| 360 degree speed(variable frequency adjustable) | 1-14/min |
| speed ratio(revolution:rotation) | 1:2 |
| Adjusting speed control method | PLC Frequency conversion control system,Touch screen control system |
| Driving style | Gear drive |
| Grinding ball ratio(the detail ratio contact customer service)The
right sheet is just for reference.In fact that we are matching
according to the customer requirement. | General grinding over 800 mesh(5mm;10mm;15mm) feeding material less
than 3mm |
| Fine grinding 800-1500 mesh(3mm;5mm;10mm;)feeding material less
than 1mm |
| Super fine grinding over 1500 mesh(0.1~10μm)(1mm;3mm;5mm)feeding
material less than 200 mesh |
| Voltage | 220V |
| Power | 0.75Kw |
| Working method | Two or four cans working at the same time |
| Maximum continue working time | 72h(Timing 0-9999h) |
| Programmed control | The ball grinding used for high-tech micro computer chip control.It
can run alternately for positive turn and reverse turn(0-999min),
and run alternately for positive turn and pause,reverse and
pause,and than positive run. It is especially suitable for cooling
or intermittent operation. |
| Weight | 170kg |
| Dimension | 95*55*65 |
| Features (direct motor connection) | The only one which have the drive mode with speed reducer with
motor direct drive in the market,have replaced of traditional belt
drive mode.In the past, the ball mill was mainly driven by a belt,
and all the gravity is on the belt. After running for a long time,
the belt is easy to aging, skid, fracture and so on. There is the
direct speed reducer with motor to installed into the planetary
master disk in our company,its stability is more 5 times higher
than that of belt.And also there is no belt replacement every 3
months during the later maintenance.It has applied for patent
protection for planetary ball mill with motor direct drive. |
Mill jars and Mill balls
Our factory can provide 304 stainless steel jar,Tungsten carbide jar(YG8),ceramic jar,corundum/alumina jar, zirconia jar, agate jar.nylon jar, PU jar, PTFE jar.We can also provide the balls material of stainless steel,ceramic,corundum,alumina,zirconia,agate, tungsten carbide.
Grinding Media
