Lab Cryogenic Planetary Ball Mill Chemical Grinding Machine With
Air Condition

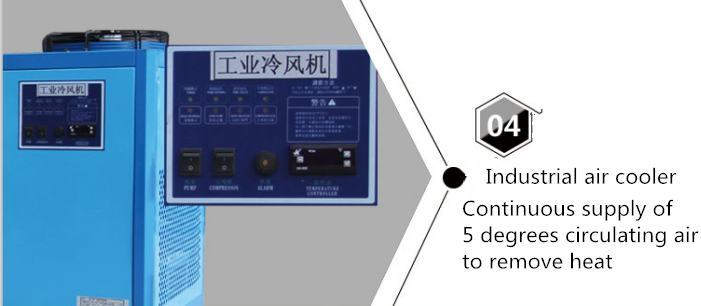

Experiment on the following requirements of the Cold Air
circulating Planetary Ball Mill
● The temperature need lower than 50 ℃ during the grinding of
biological samples.
● The powder will be caked in the process of ultrafine grinding.
● In some experiments, the temperature should not be higher than 30
℃.
● The powder will expand during high temperature grinding, which
will lead to explosion experiment
Technical parameter:
| Model | Spec | Grinding jar matching | Quantities | Air condition | Speed (revolution ) | Speed rotation | Power | Temperature range |
| XH-XQM1L | 1L | 50-250ml | 2 or 4 | 2P | 10-450 | 20-900 | 220v | 0-30℃ |
| XH-XQM2L | 2L | 50ML-500ml | 2 or 4 | 2P | 10-400 | 10-800 | 220v | 0-30℃ |
| XH-XQM4L | 4l | 50-1L | 2 or 4 | 2P | 10-400 | 10-800 | 220v | 0-30℃ |
| XH-XQM8L | 8L | 2L | 2 or 4 | 2P | 10-320 | 20-640 | 220v | 0-30℃ |
| XH-XQM12L | 12L | 3L | 2 or 4 | 3P | 10-320 | 20-640 | 380v | 0-30℃ |
| XH-XQM16L | 16L | 4L | 2 or 4 | 3P | 10-280 | 20-560 | 380v | 0-30℃ |
| XH-XQM20L | 20L | 5L | 2 or 4 | 3P | 10-280 | 20-560 | 380v | 0-30℃ |
| XH-XQM40L | 40L | 10L | 2 or 4 | 3P | 10-220 | 20-440 | 380v | 0-30℃ |
| XH-XQM60L | 60L | 15L | 2 or 4 | 3P | 10-180 | 20-360 | 380v | 0-30℃ |
Application:
It is widely used Pearl, ginseng, Dendrobium candidum, tablets,
medicament, liquorice, coke, coal, glass, cellulose, paper, chip,
polymer, pigment, metal oxide, iron ore, iron powder, aluminum
powder, magnesium powder, ceramics, Alumina, bone, kaolin,
Limestone, gypsum, quartz, minerals, ores, carbonized fibres,
graphite, ink, clay minerals, fibre products, sewage sludge,
catalysts, chemicals, alloys, soils, waste samples, wood, plant
materials, Cement slag, concrete, slag, tobacco.
Feature:

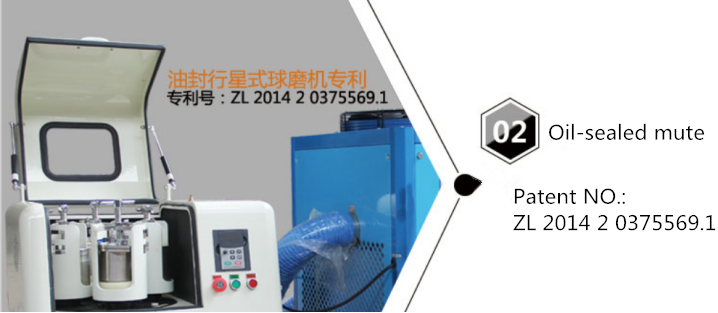

1. Patented oil seal mute technology and gear drive core
technology,noise reduced by 50%,increase service life more than 2
times
2. PLC frequency conversion control:the inverter has the protection
of undervoltage and overcurrent, and has the memory after the power
off, so it can protect the motor.
3. With own design for precision gear drive instead of original
belt drive,such as belt easy to slip and unstable speed.
4. Ultra-low temperature treatment with liquid nitrogen cryogenic
system.
5. Detection of temperature and pressure in ball mill
6. Safety stirrup lock, easy to install and disassemble, easy to
loosen, safe and reliable, simple and easy to use, delicate design
and beautiful shape.
7. When carrying, there are universal wheels to push and run;When
operating, there are universal supporting feet for stable.
Details:
Ball Mill Jars And Ball Mill Grinding Media
Our factory can provide 304 stainless steel jar,Tungsten carbide
jar(YG8),ceramic jar,alumina jar,zirconia jar,agate jar.Nylon jar,
Polyurethane jar, PTFE jar.we can also provide grinding media
stainless steel,ceramic,corundum,alumina,zirconia,agate,tungsten
carbide.
Join an exhibition
Company Information
Changsha Mitrcn instrument equipment Co., Ltd specializes in
designing, manufacturing and selling experimental equipment.
Supported by the state key laboratory of Central South University
Powder Metallurgy with Hunan University, Shanghai Jiao tong
University and other well-known universities to maintain long-term
close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight
senior engineer,eight senior technician, ten engineer,six
technician.The main business is the R&D, production and sale of
experimental equipment and related technical consultation services.
Our factory shops:
Our company office:
Package:
