Stirred Ball Milling Machine For Laboratory Widely Used In Pigments
, Lithium
Catalog and parameter:
| Model | Power | Voltage | Speed | Cooling equipment | Volume of jar | Charging capacity |
| SJM-1L | 0.75 | 220v | 0-900 | Water cool cycle | 1L | 330ml |
| SJM-2L | 0.75 | 220v | 0-900 | Water cool cycle | 2L | 660ml |
| SJM-3L | 1.5 | 380v | 0-900 | Water cool cycle | 3L | 1000ml |
| SJM-5L | 1.5 | 380v | 0-900 | Water cool cycle | 5L | 1.6L |
| SJM-10L | 2.2 | 380v | 0-700 | Water cool cycle | 10L | 3.3L |
Application of Stirred Ball Mill
Due to the special requirements of high and new technology and new
material industry on mineral powder, powder industry is developing
rapidly in the direction of ultra-fine grinding.The ultrafine
powder has high specific surface area, low particle defect, high
activity, fast reaction rate, good filling reinforcement, high
solubility, low sintering temperature and high sintering strength.
It is of great significance to improve the ultrafine grinding
technology for the development of modern high-tech new material
industry.
Stirred ball mill is one of the main equipment of modern ultra-fine
grinding, because of its advantages of high energy density, fine
product size, small environmental pollution, simple equipment
structure, convenient maintenance and so on, it is widely used in
building materials, coatings, chemical industry, medicine, food,
Pesticide, electronics, metallurgy, ceramics, pigments, lithium
electricity, rare earth, phosphor powder and other fields.
The stirred ball mill produced by our company is mainly used in the
experimental environment. It has a flexible, reliable and compact
design model,which can meet the needs of grinding and dispersing in
all laboratories. The experimental results can also be easily and
accurately amplified to the production model. Because the energy of
mixing/stirred ball mill is high, in order to reduce the change of
material performance, the cooling method of water cool cycle is
added on the original basis, thus lowering the internal
temperature.
Accessories selection
1.Material selection of Ball Mill Jar: Stainless steel jars (standard), nylon, polytetrafluoro,
polyurethane (optional)
2.Grinding ball material selection: zirconia ball, stainless steel
ball, agate ball, alumina ball
3.Mixing rod material selection: stainless steel (standard),
polyurethane (optional)
4.Debugging mode: frequency conversion debugging (standard match)
5.Upgrade mode: automation and manual (both standard)
6.feeding granularity:about 3-5mm
7.discharging granularity:0.1um(100nm)
8.Grinding mode:dry grinding,wet grinding(it is better for wet
grinding)
9.Cooling method: water cycle cooling.
Note1:The size of the ball must be less than 3mm using in the
stirred ball mill. The big ball is not suitable for using in the
mixing ball milling..
Note2: It have electric automatic lifting function for
stirred/mixing ball mill. And also we have added the manual lifting
function using for all stirred/mixing ball mill in order to avoid
sudden

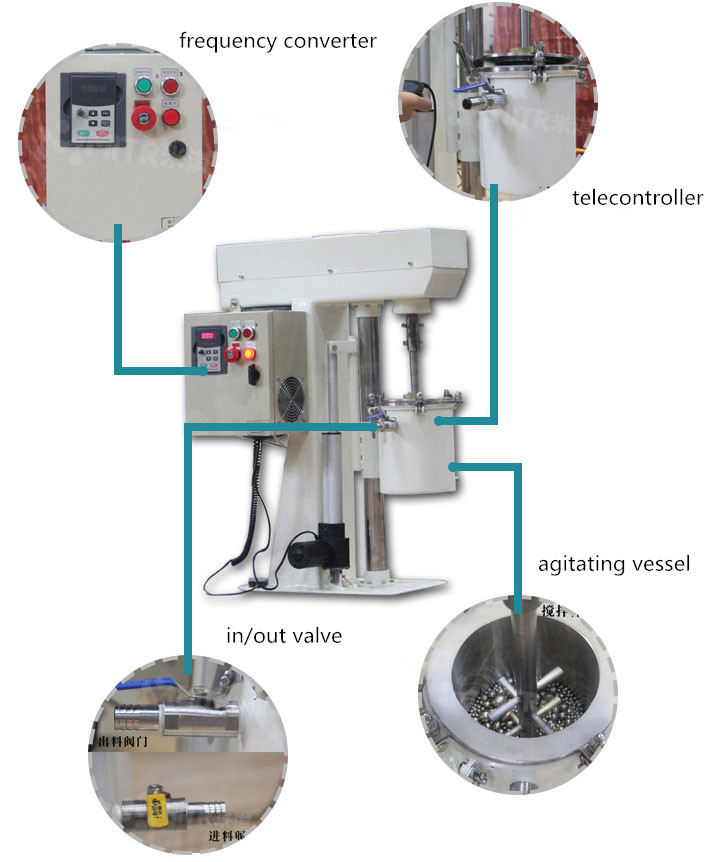

Details:
Company Information
Changsha Mitrcn instrument equipment Co., Ltd specializes in
designing, manufacturing and selling experimental equipment.
Supported by the state key laboratory of Central South University
Powder Metallurgy with Hunan University, Shanghai Jiao tong
University and other well-known universities to maintain long-term
close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight
senior engineer,eight senior technician, ten engineer,six
technician.The main business is the R&D, production and sale of
experimental equipment and related technical consultation services.
