Lab Vacuum Glove Box Plexiglass Transparent Testing Chamber For
Lithium-Ion Battery

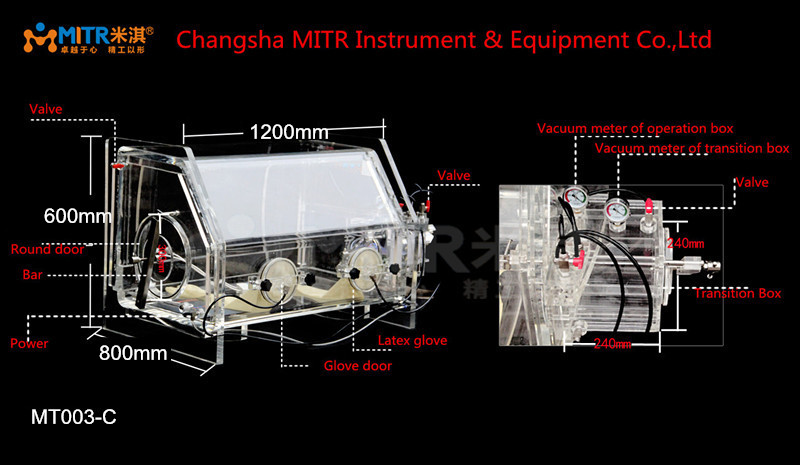

MT003-C details as following:
| Brand Name |  MITR |
| Model | MT003-C |
| Material Thickness | 30mm |
| Door Shape/Size | Round door (Left) the door dimension of operation box:300mm; Transition box(Right):160mm |
| Glove Box Dimension(L*W*H)mm | 145*600*1.1 145*800*0.3(Choose one of them) |
| Operation/Main Box Dimension | 1200*800*600(mm) |
| Transition Box Dimension | 240*240*240(mm) |
| Basic configuration | two vacuum meter; six vacuum valve; one power supply board;a set of
trachea |
| Vacuum degree of transition room | 0～-0.1Mpa(2.5 level vacuum meter),pressure maintaining over 12
hours |
| Vacuum degree of operation room | 0～-0.1Mpa(2.5 level vacuum meter),pressure maintaining over 12
hours |
| Using gas | Argon,Helium,Nitrogen(purity 99.95％) and more |
| Selective equipment | Vacuum Pump(4L or 6L or 8L),Dew instrument,oxygen analyzer,balance,
furnace, etc. |
Catalog:
| Acrylic glove box -Type C with vacuum atmosphere protection | |
| Model | Operation box dimension(mm) | Acrylic thickness(mm) | Transition box | Vacuum | Material | Left round door | Gloves |
| | | | Main box vacuum | Transition box vacuum | | | |
| MT012 | 700*450*500 | 20mm | Yes | Yes | Yes | PMMA | 300mm | Two |
| MT011 | 800*550*600 | 25mm | Yes | Yes | Yes | PMMA | 350mm | Two |
| MT010 | 1000*500*500 | 25mm | Yes | Yes | Yes | PMMA | 300mm | Two |
| MT009 | 1000*700*500 | 30mm | Yes | Yes | Yes | PMMA | 300mm | Two |
| MT008 | 900*600*700 | 30mm | Yes | Yes | Yes | PMMA | 300mm | Two |
| MT007 | 1000*600*700 | 30mm | Yes | Yes | Yes | PMMA | 300mm | Two |
| MT006 | 1000*750*700 | 30mm | Yes | Yes | Yes | PMMA | 300mm | Two |
| MT005 | 1200*600*600 | 30mm | Yes | Yes | Yes | The supply of these dimensions is not stable and please contact
sales if you need. |
| MT004 | 1200*600*700 | 30mm | Yes | Yes | Yes | |
| MT003 | 1200*800*600 | 30mm | Yes | Yes | Yes | |
| MT002 | 1200*800*700 | 30mm | Yes | Yes | Yes | |
| MT001 | 1094*640*645 | 30mm | Yes | Yes | Yes | PMMA | 400mm | Four
|
Main Application
1. In cooperation with scientific institution in the experiment of
low-energy radioactive substance, it can be worked in the operation
box when aseptic operation of microorganism inoculation and
qualitative and quantitative analysis of chemicals and other
airtight isolation operations.
2. Electronic materials, magnetic materials, equipment batteries,
biological cultivation, food packaging, battery materials,
etc.processing under protective atmosphere.
3. The glove box is a laboratory facility that high purity inert
gas is introduced in the box and cyclic filtration the active
substances. Also known as vacuum glove box, inert gas protective
box, etc.
The main function is to remove the O2 and H2O and the organic
gas.Widely used in ultra-pure environment without water, oxygen and
dust. For example: lithium ion batteries and materials,
semiconductors, super capacitors, special lamp, laser welding,
brazing, material synthesis, OLED,MOCVD,etc. Also including
biological applications, such as anaerobic culture, cell hypoxia
culture, etc.
Main Feature
1. The material is clarity PMMA with high transparent, which is
sample structure and easy to operate
2. Be able to pass through ultraviolet light
3. There is a porous electrical socket in the glove box,which is
convenient to scientific experiments
4. Good sealing performance,and can shield and absorb the α -rays
and low-energy β -rays which is emitted by radioactive materials,
in case to damage on the human body by ionizing radiation
Optional Configuration
1. Type A: This glove box is specifically for protection against
radiation, isolation operation or dust-proof operation, and no
transition box.
2. Type B: As an anaerobic anhydrous glove box, the transition room
can be vacuumed but not vacuum in the main box, and the glove box
could be replaced by inert gas.
3. Type C: The main box and transition box can be vacuumed and
replaced by inert gas, limit vacuum degree can reach -0.1mpa.
Customized Glove Box
Company Information
Changsha Mitrcn Instrument Equipment Co., Ltd. specializes in
designing, manufacturing and selling experimental equipment.
Supported by the state key laboratory of Central South University
Powder Metallurgy with Hunan University, Shanghai Jiao tong
University and other well-known universities to maintain long-term
close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight
senior engineer,eight senior technician, ten engineer,six
technician.The main business is the R&D, production and sale of
experimental equipment and related technical consultation services.
