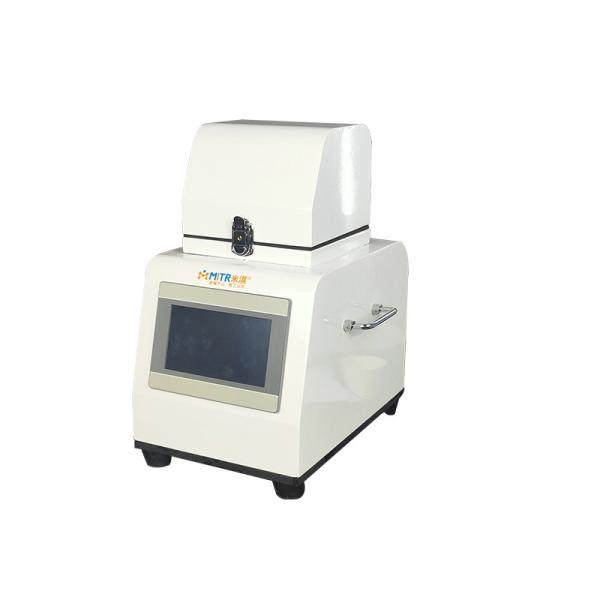

Lab Lcd Touch High-Throughput Tissue Grinder Ball Mill
Summary:
Tissue grinder is a special, fast, efficient and multi-tube
consistent system. It can extract and purify raw DNA,RNA and
proteins from any source (including soil, plant and animal tissues,
bacteria, yeast, fungi, spores, paleontological specimens, etc.
Application:
1. It is suitable for grinding and crushing samples of various
plant tissues including roots, stems, leaves, flowers, fruits,
seeds, etc;
2. It is suitable for grinding and crushing samples of various
animal tissues including meat, skin, hair, lymph nodes, muscles,
bones, etc.
3. It is suitable for grinding and crushing samples of fungi,
bacteria, etc.
4. It is suitable for grinding and crushing samples of food and
pharmaceutical composition analysis;
5. It is suitable for grinding such as volatile samples, oil shale,
wax products, etc.
6. Applicable to grinding and crushing of plastics, polymers
including PE,PS, textiles, resins and other samples.
7. Faster and more efficient extraction of plant and animal tissue
DNA,RNA and proteins.
8. Faster and more efficient freeze-grinding, oscillatory mixing
9. Faster and more efficient bacteria, yeast sample cell wall
breaking and lysis, only a few tens of seconds
10. Faster and more efficient food, feed sample grinding
homogenization;
11. Faster and more efficient minerals, ore sample grinding and
homogeneous, up to 100 nanometers
12. Faster, more efficient geographic analysis (atomic absorption,
x fluorescence) and three-generation sequencing sample preparation.
Feature:
1. Operation quantity, good effect, efficient and fast work can
finish the grinding of 24 samples in 1 minute. Save time and
effort, between batches, within batch difference is small.
extracted protein is higher than live, the nucleic acid fragment is
longer ;
2. there is no cross contamination, the sample tube is in a
completely closed state during crushing, and the disposable
centrifuge tube and beads can be used. The sample is completely
kept in the tube to avoid cross-contamination between samples and
external pollution;
3. The operation is simple, the built-in program controller can set
the grinding time, rotor vibration frequency and other parameters,
humanized operation interface ;
4. Stability is good, using vertical oscillation mode, grinding is
more adequate, stability is better, the instrument operation
process, noise less than 70 db, will not interfere with other
experiments or instruments ;
5. Facilitate low temperature operation, when the need for low
temperature grinding environment, the adapter with samples can be
immersed in liquid nitrogen to cool for 1-2 minutes, take out and
move back to the host quickly fixed to start grinding, no need for
re-freezing treatment, save liquid nitrogen
| Parameter | MITR-H12 | NITR-YZ24 | MITR-YZ48 | MITR-YZ64 | MI1K-YZ96 |
| The capacity of sample in the adapter | 12*5ml 8* (7-15)ml 4*25ml 12*50ml | 24* (0.2-0.5ml) 24*2ml 16*5ml 12*5ml 8*(7-15)ml 4*25ml 12*50ml | 48* (0.2-0.5ml) 48*2ml 24*2ml 16*5ml 12*5ml 8*(7-15)ml 4*25ml
2*50ml | 64* (0.2-2ML) 64*2ML 2*2ml 16*5ml 12*5ml 8*(7*15)ml 4*25ml/2*50ml | 96* (0.2-0.5ML) 96*2ml 48*2ML 24*2ml 16*5ml 12*5ml 8*(7-15)ml
4*25ml /2*50ml |
| Weight | 36KG | 40KG |
| Application | Tissue homogenization, grinding, cell breakage, homogenizing,
material dispersion, preparation, sample mixing, oscillation |
| LCD | Micro computer controled,7 inch screen,working status |
| 36 sets of experimental data | With different experimental samples.animal tissue,bone
age,skin,hair pattern |
| Speed | 10-70HZ/M |
| Shockproof principle | Franch technology ---schleiferr l operation |
| Adapter material | PTFE or alloy steel |
| Grinding mathod | Dry,wet,cryogenic grinding |
| Feeding size | According to the adapter size |
| Final size | ~5um |
| Quantity of grinding jar | ＞2 |
| With antomatic fastening device | Yes |
| Safety lock at work | Protection |
Grinding tool material | Alloy steel,PTFE |
| Power | 220V/50HZ 2 phases |
| Working time | 0 's-99'm |
| Grinding ball size | 0.1-30mm |
| Grinding ball material | Alloy steel,Chromium,Zirconium oxide,tungsten carbide,silica |
| Speed up | High speed in 2 seconds |
| Speed down | Low speed in 2 seconds |
| Noise Level | <65db |
| Dimension | 280*400*530mm |

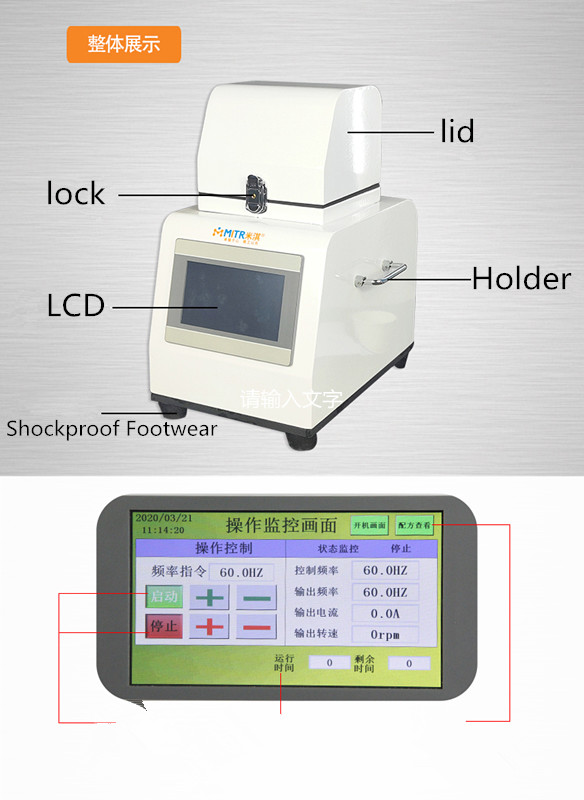

Details:
Company Information
Changsha Mitrcn instrument equipment Co., Ltd specializes in
designing, manufacturing and selling experimental equipment.
Supported by the state key laboratory of Central South University
Powder Metallurgy with Hunan University, Shanghai Jiao tong
University and other well-known universities to maintain long-term
close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight
senior engineer,eight senior technician, ten engineer,six
technician.The main business is the R&D, production and sale of
experimental equipment and related technical consultation services.
